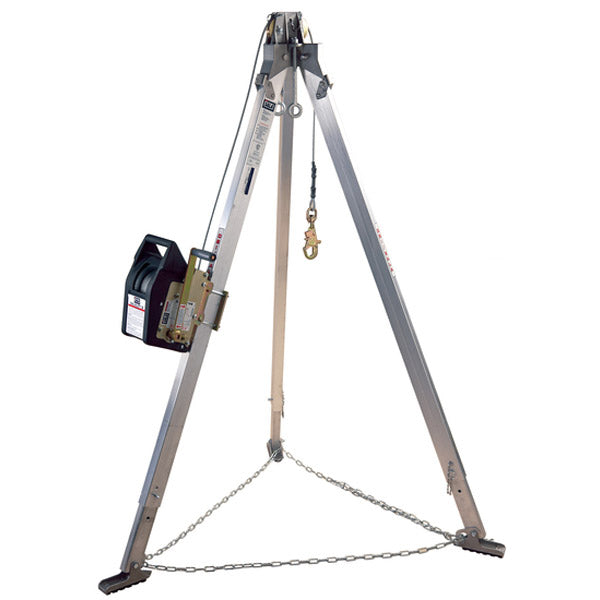

DBI-SALA Advanced™ Aluminum Tripod with Salalift™ II Winch - 60 ft.Part Number: 8300031
* 7 ft. (2.1 m) aluminum tripod (model 8000000)
Lightweight and durable aluminum construction is easy to transport, set-up and use and will stand up to the elements for extended longevity.
* Telescoping adjustable locking legs
Simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space.
* Built-in pulley system
Provides an easy way to rout your mechanical devices lifeline into the confined space, and keeps it centered.
* Specialized safety shoes and leg support chain
Offers a non-slipping design for both flat surfaces and uneven terrains preventing movement of the legs when the system is under load.
* Integrated 5,000 lb. (22 kN) eyebolt anchor points
Two eyebolts designed to hand plumb regardless of surface are ideal for attachment of secondary or back-up systems.
* Manually operated winch (model 8102003)
Easy operation is performed by rotating the handle to raise or lower personnel or materials.
* 60 ft. (18 m) of 1/4 in. (6.3 mm) stainless steel wire rope
Abrasion resistant and extremely durable lifeline construction provides added field longevity.
* 6:1 gear ratio mechanical advantage
Offers 12.75 ft./min. (3.9 m) winching speed with no power source required to help facilitate fast and efficient rescues.
* Free-wheel mode
Operator activated feature allows drum to rotate freely paying out the lifeline as the worker below moves downward.
* Built-in fall protection
An overspeed brake in free-wheel mode will lock and stop the falling worker, absorb energy and allow the operation to reset and continue.
* Overload clutch
Device will automatically slip to prevent severe overloading or damage and preventing injury to entangled personnel during raising.
* Swiveling snap hook with impact indicator
Provides secure connection to load, prevents lifeline from twisting and offers a visual indicator if the device has been impact loaded.
* Quick connect winch/SRL mount bracket
Tripod and winch include mating brackets allowing user to quickly and easily connect the two together forming a complete rescue system.
* Equipped with i-Safe™
Integrated RFID identification tag for recording and storing information on inspections and tracking safety equipment.
