French Creek Sliding Beam Anchor

French Creek Sliding Beam Anchor

Part Number: 1700
Light BulbPros Recommendation

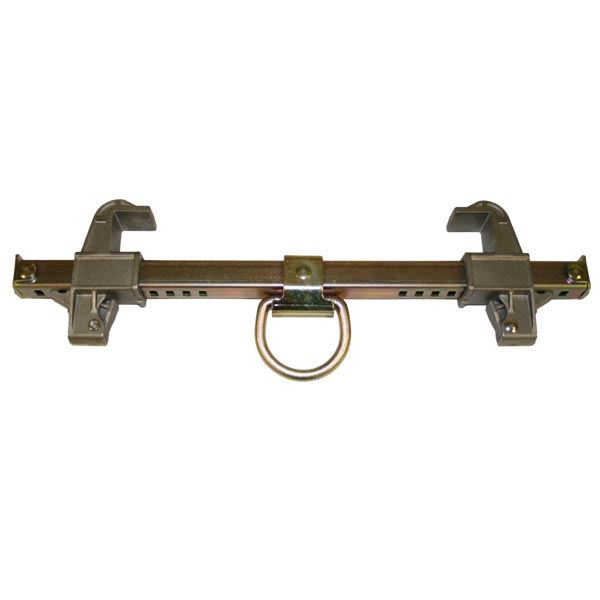

The Adjustable Sliding Beam Anchor by French Creek installs easily on the top or bottom flange of an I-beam, and slides across the beam as the worker moves.
DescriptionDescription

* The Sliding Beam Anchor by French Creek is designed to be used on the top or bottom of an I-beam.

* It is adjustable from 3 1/2" to 12" wide flange, up to 1 1/4" thick, with numerous locking slots for full range of adjustment.

* The sliding beam anchor features double stainless springs, double action one-handed quick release latches, and double-toothed latches for added strength.

* A centered, forged plated steel D-ring prevents jamming for a smoother slide.

* French Creek's sliding beam anchor features a plated alloy steel crossbar.

* Has an ultimate tensile rating of 5,000 lbs.

** Due to the "made to order" nature of the product, this item is NOT returnable.

SpecificationsTechnical Specs
Part Number: 1700
Manufacturer:French Creek
Anchor Durability:Reusable/Temporary
Condition:New
Fasteners:Not Required
Flange Thickness:up to 1-1/4"
Flange Use:Top or Bottom Flange
Flange Width:3 1/2" - 12"
OSHA Standards:Meets All Applicable
Sliding Anchor:Yes
