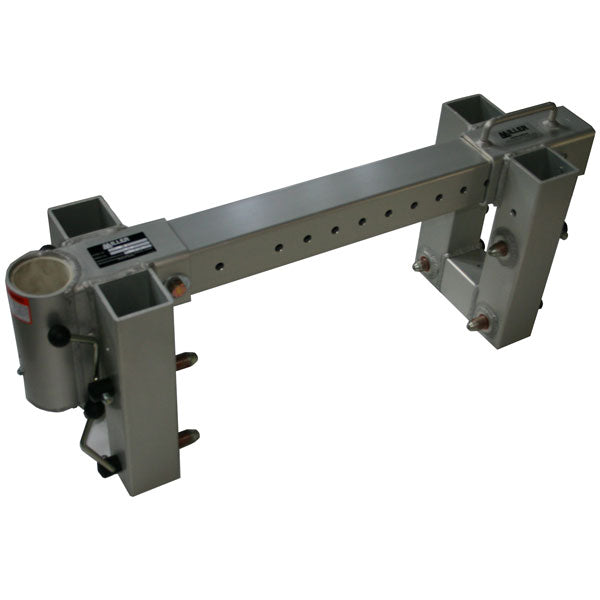

Miller Adjustable Barrel Mount SleevePart Number: DH-6/
For shoring, wall, and parapet applications
Use this mounting sleeve on shoring, wall, and parapet applications. It's added girth makes it a bit more versatile than the standard barrel mount sleeve. If you're looking for flexibility, you'll find it here.
Zinc-plated steel construction
The zinc plating with a CS-500 sealant finish providing corrosion resistance similar to hot-dip galvanizing. Ipso Facto, your mounting equipment will be around for years to come, like that annoying relative that just won't pass away.
Welded aluminum with lightweight durability
The welded aluminum on this mounting sleeve keep the unit lightweight so it's easy to carry and move around from place to place. The weight keeps your back intact, while the durability keep your wallet lighter. Peanut butter meet jelly.
Take this bad boy on the road with you. You can use it over and over again on job after job. Some lonely people buy dog's, we bought this.
8 independent clamping screws
The independent clamping screws help alleviate slippage and give the mounting sleeve several points of anchorage. In most instances in life, slippage is not a good thing.
Accommodates wall thickness up to 24"
The flexibility this mounting sleeve has over its younger brother is the ability to adjust up to a full 24" wall thickness. That gives you a lot of flexibility when using this mounting system. Almost Twister flexibility.
Use with Miller One Piece Adjustable Mast
This mounting sleeve is designed to be used with the Miller adjustable mast as a complete unit. Buy one mast, and collect all of your favorite bases and mounting sleeves. Like heavy baseball cards!
* Includes PVC liner
* Each installation MUST be approved to local standards by qualified engineer
* Structure in the area of the clamp MUST withstand 90,0000 lbs. without deformation.
* Excessive wall taper can cause retaining screws to slip
* If base material does not meet minimum requirements, reinforcements MUST be added to meet the minimum requirements.
* Minimum design factor 4:1
** Due to the "made to order" nature of the product, this item is NOT returnable.
*** This item does not qualify for free shipping ***
