ShadowLite Beam Anchor

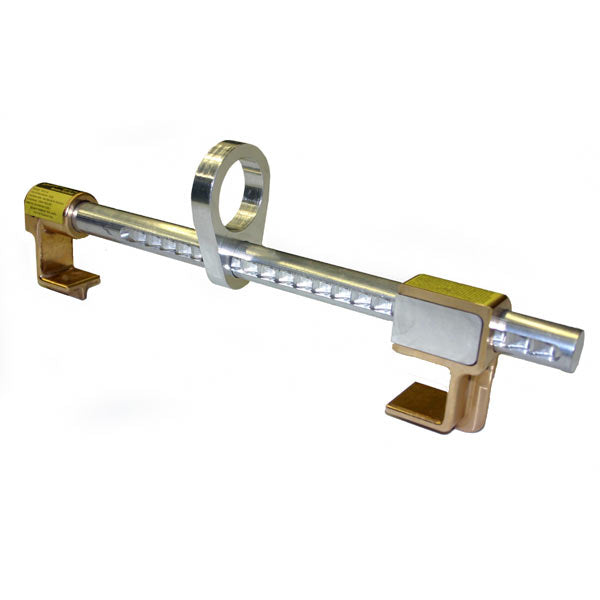

Miller ShadowLite Beam Anchor

Part Number: 8816-14/
Light BulbPros Recommendation
The Miller ShadowLite Beam Anchor is completely reusable and connects securely to flanged beams while moving freely with the worker.
DescriptionDescription

Designed for Flanged Beams
* The Miller ShadowLite Beam Anchor connects to flanged beams ranging from 3 inches to 14 inches wide and up to 1-1/4 inches thick.

Moves Freely Along Beam
* The ShadowLite Beam Anchor locks on to the beam securely, yet moves freely with the worker along the beam to promote safety.

Overhead or Foot Level Tie Off
* This steel beam anchor can be installed overhead, or when an overhead anchorage doesn't exist, when attached to the top flange of a horizontal I-beam at the worker's feet.

Speedy Installation
* This Miller beam anchor installs quickly and requires no loose pins and is constructed of high strength bronze and aluminum for a longer lifespan.

** When the ShadowLite Beam Anchor is attached at a worker's feet, a double pack shock-absorbing lanyard is required to keep fall arrest forces within OSHA requirements.

SpecificationsTechnical Specs
Part Number: 8816-14/
Manufacturer:Miller
Anchor Durability:Reusable/Temporary
Condition:New
Fasteners:Not Required
Flange Thickness:up to 1-1/4"
Flange Use:Top or Bottom Flange
Flange Width:3" - 14"
OSHA Standards:Meets All Applicable
Sliding Anchor:Yes
